UHF Anti-Metal Tag

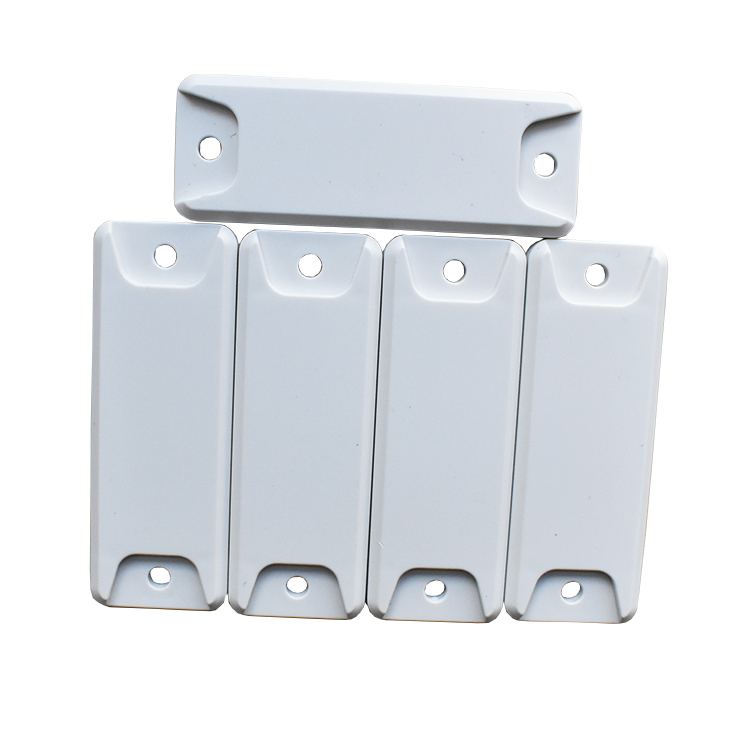

IP-68 Waterproof UHF RFID Metal tag

IP-68 outdoor waterproof ABS UHF RFID Metal tag

Brief introduction Product Features

*Size:70(L)*25 (W)*5(H)mm *1. NXP Ucode7M/8 Chip to achieve best reading effect;

*Frequency:860-960MHz *2.Linear Antenna design to achieve best sensitivity;

*Protocol:ISO18000-6C *3.Unique TID number, high security performance;

*Chip: NXP Ucode7M/8 *4.Application: warehouse shelf tag, asset management

Specification
Model number	RL-TM67
Performance Index
Material	ABS
Hole Size	Hole Diameter 4.12mm，Hole center distance 58mm
Read Distance	More than 3m 4W EIRP Alien 9900 Fixed Reader, 1m with Alien 9011 handheld reader
Drop Test 1m height, 200 times passed.
Acid/alkali Resistant	Can Resist PH=5～10
Gasoline/alcohol Test 92# gasoline wiped and 95% alcohol test. Passed
IP Grade	IP-67
Data storage/erasable	More than 10 years/more than 100000times
Storage/work Temperature	-25°C--70°C/-35°C--70°C
Other Craft	Encoding, Laser mark, logo, letter, barcode printing
Installation	M3 or M4 Screws, Rivets, 3M Glue
Application	IT assets, metal container, power facility, personnel inspection, Storage shelves
