UHF RFID Reader Module

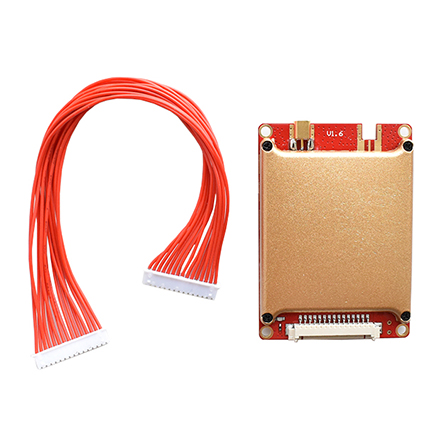

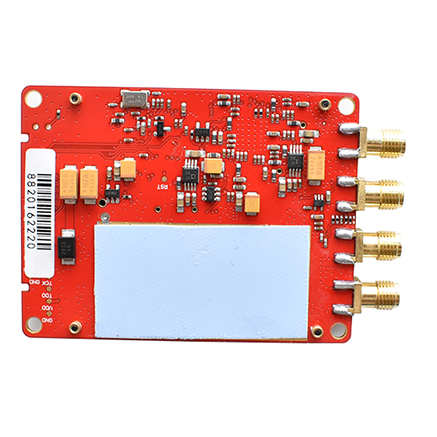

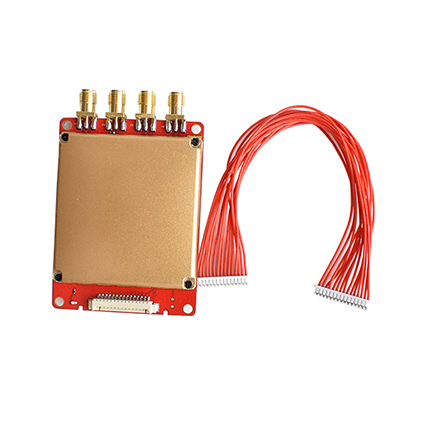

Impinj Indy R2000 UHF RFID OEM Module

Frequency:865-868MHz/902-928MHz
Output Power:30dBm
Read distance:3-20m
Connector:4SMA Female
Product description: Impinj Indy R2000 UHF RFID Reader Module
INQUIRY

Impinj Indy R2000 UHF RFID OEM Module-Order Now

Brief Introduction

*Size:77(L)*51(W)*8(H)mm

*Weight:0.05kg

*Protocol:ISO18000-6C(EPC Class1 Gen2)/ISO18000-6B

*Communication port: TTL Uart

*Frequency:840-960MHz(Can be customized)

*Max Read Speed:>700 tags/Second

Features

*1.With Impinj R2000 chip and ARM embedded processing chip to achieve high speed reading ;

*2.Support 4 SMA Port;

*3.Max Power 33dbm,Can be adjustable;

*4.Stable, External radiator, support firmware upgrade;

*5.Rapid read and write processing rate;

*6.Application: Logistic, personal identification, access control, security system

Specification
Model Number			RM-64
Performance Index
Frequency			840-960MHz(Can be adjustable)
Frequency Modulation			FHSS or Fixed Frequency, can be adjust by software
RF Output Power			0-33dBm;50ohm load
Output power accuracy			+/- 1dB
Output power flatness			+/- 0.2dB
Antenna Port			4 SMA Port
Communication interface			TTL Uart Port
Communication rate			Serial port 9600～115200bps
Firmware upgrade			Can be update online
Input/output (GPIO)			4 GPIO（2input 2output）
Tag RSSI			Support
Antenna connect protection			Support
Temperature Monitor			Support
Tag Operation performance
Read distance			With 8dbi Antenna,15-30m(depend on tag)
Protocol			ISO18000-6C(EPC Class1 Gen2)/ ISO18000-6B
Max Receive sensitivity			-85dBm; Max return loss 10dBm
Read Tag Peak Speed			>700pcs/second
Tag Cache			1000pcs Tag, @ 96 bit EPC
Electrical and Mechanical Performance
Working Voltage			3.7V-5 V
Standby Current			<50mA (EN Feet High Level)
Sleep State Current			<100uA (EN Feet Low level)
Work Current			1.2A +/-10%
Weight			0.05KG
Humidity			5% to 95%, Non-condensation
Cooling			External radiator, Air Cooling
Work Temperature			-20ºC to 55ºC
Storage Temperature			-20°C to 85°C
General I/O Interface
No.		symbol	description
1		GND	Grounding at the same time
2		GND	Grounding at the same time
3		3.7V – 5V DC	Connect power at the same time
4		3.7V – 5V DC	Connect power at the same time
5		GPIO 3	Output
6		GPIO 4	Output
7		GPIO 1	Input
8		Buzzer	Driven ,can output current > 50mA
9		UART_RXD	TTL Level
10		UART_TXD	TTL Level
11		USB_DM	Only for test
12		USB_DP	Only for test
13		GPIO 2	Input
14		EN	High Level enable
15		GPIO 5	RS-485 Direction control
Antenna Port (SMA Male)
No.	symbol		description
1	ANT1		Antenna1
2	ANT2		Antenna2
3	ANT3		Antenna3
4	ANT4		Antenna4
