UHF RFID Antenna

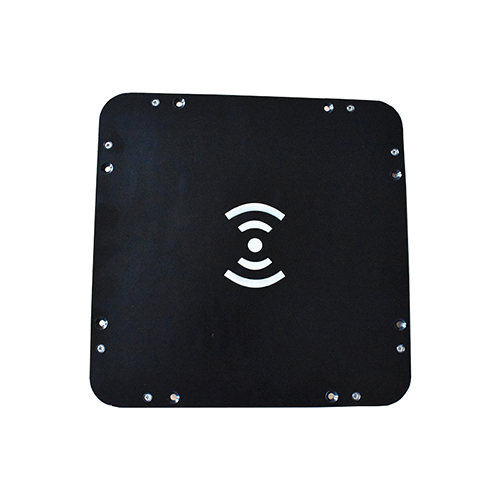

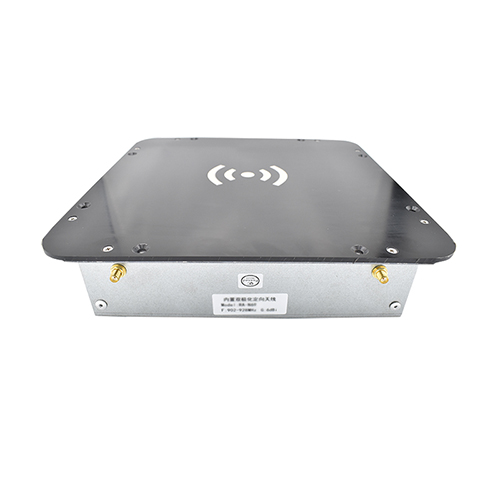

6dBi UHF RFID Near Field Antenna

Frequency:865-868MHz/902-928MHz
Gain:6dBi
Polarization: dual polarization
Connector:2SMA Female
Product description: 6dBi UHF RFID Near Field Antenna
INQUIRY

6dBi UHF RFID Near Field Antenna

Brief Introduction

*Size:260(L)*260(W)*66(H)mm
*Frequency:902～928MHz
*Gain:6dBi
* Polarization: dual polarization

*Weight: About 1.5KG

Product Features
*1.Gain 6dBi;
*2. Close range recognition, no blind zone, multi tags
*3. Material: Iron +Plastic
*4. Widely used in RFID asset management, unmanned retail, jewelry counter inventory.

Model Number	RL-AN69
Electrical Performance Index
Input impedance	50Ω
VSWR	≤1.4
Connector	2 SMA Female
Front/Back Rte	≥15
Polarization	Dual polarization
Lighting protection	DC Grounding
Half-power beam width (°)	H:90 V:90
Max Power	20W
Size/weight	260260260mm/1.5KG
Mechanical Performance Index
Color	Black
Cover Material	Iron, Plastic
IP Grade	IEC IP-67
Work Temperature	-40ºC to+60ºC
Storage Temperature	-40°C to+60°C
Installation	Embedded into the workable surface through fixed holes
Connector position	Side
