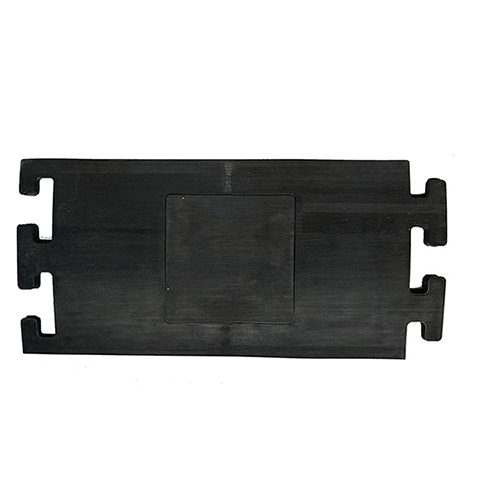

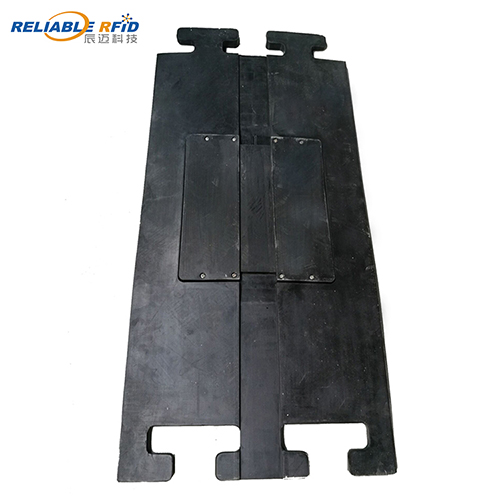

Marathon Sport timing UHF RFID Floor Mat Antenna-Order Now
Brief Introduction Product Features
*Size:1100(L)*520 (W)*27(H)mm *1.Ultra-thin design, easy installation, Gain 6dBi
*Frequency:902-928MHz/865-868MHz *2.Anti-interference, waterproof, outdoor Design
*IP grade:IP-65 *3. Application: Time sporting system, asset tracking
Specification
Model Number
RL-AM001
Performance
Index
Frequency
902-928MHz/868-868MHz(can
be customized)
Input impedance
50ohm
VSWR
≤1.5
Connector TNC Male or Customized
Polarization
Vertical
V Beamwidth-° 110
H Beamwidth-°
120
Lightning protection
DC Grounding
Size 1100(L)*520 (W)*27(H)mm
|
Weight |
12.6KG |
Material Rubber
|
Weight |
12.6KG |
Max input Power 20w
|
Work Temperature |
-40ºC to+60ºC |
Storage Temperature -40ºC to+80ºC
|
Installation |
Flat on the ground |
