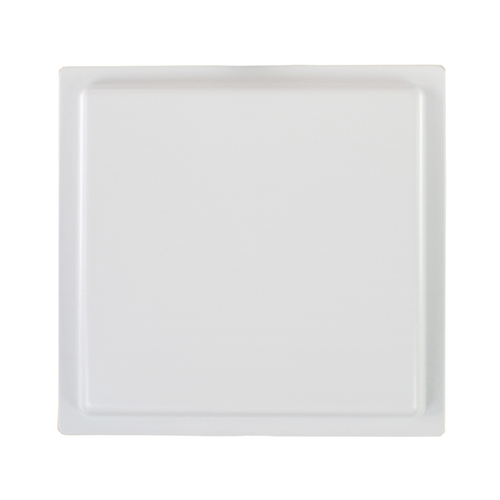

Brief introduction Product Features
*Size:445(L)*445 (W)*42(H)mm *1. N Female Connector, Gain 12dBi
*Frequency:902-928MHz/865-868MHz *2. Superior performance, high cost-effective
*Polarization: Horizontal/Circular *3. widely used in asset management, warehouse
*Weight：about 2.1KG management system and outdoor application
Specification
Model Number
RL-A912
Performance
Index
Frequency
865-868MHz,902-928MHz(can
be customized)
Input impedance
50ohm
VSWR
≤1.3
Color White
Connector
N Female
Polarization Linear or Circular
V Beamwidth-°
45
H Beamwidth-°
45
Lighting Protection DC Grounding
|
F/B Ratio |
≥25 |
Max input Power 100W
|
Material |
ABS Shell + Aluminum alloy |
IP Grade IP-65
|
Work Temperature |
-40°C--70°C |
Max Wind resistance 60m/s
|

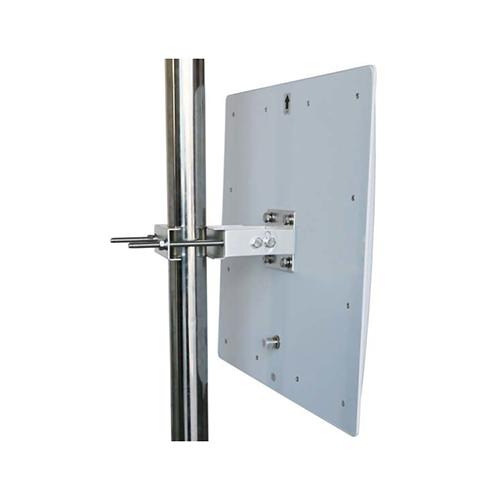

Installation |
Screw，With Mounting Kits |
Pole Diameter 40-80mm
