  • Textile UHF RFID Laundry Tag
  • Textile UHF RFID Laundry Tag
Textile UHF RFID Laundry TagTextile UHF RFID Laundry Tag

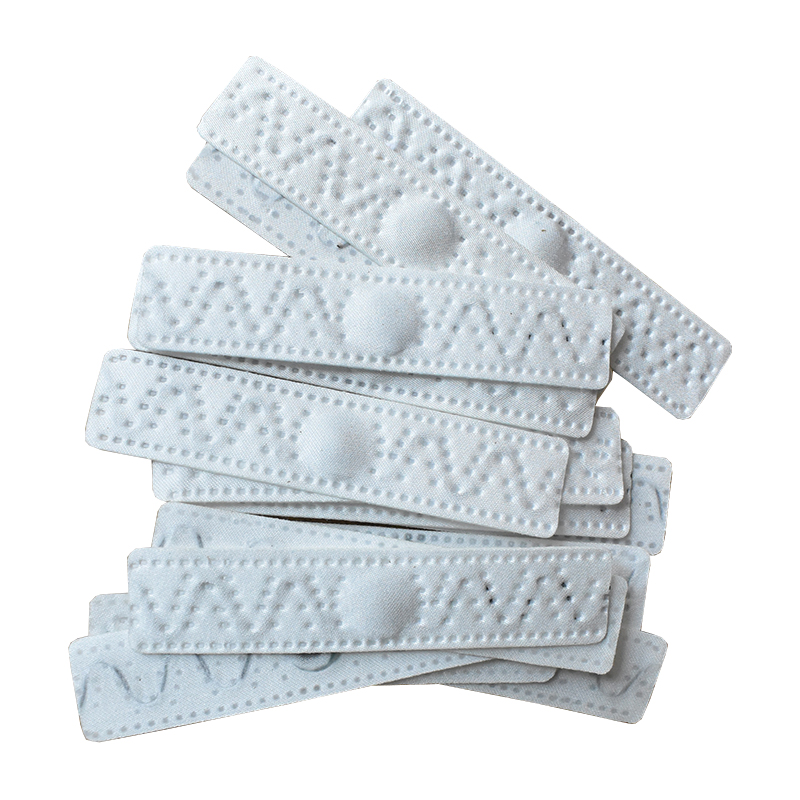

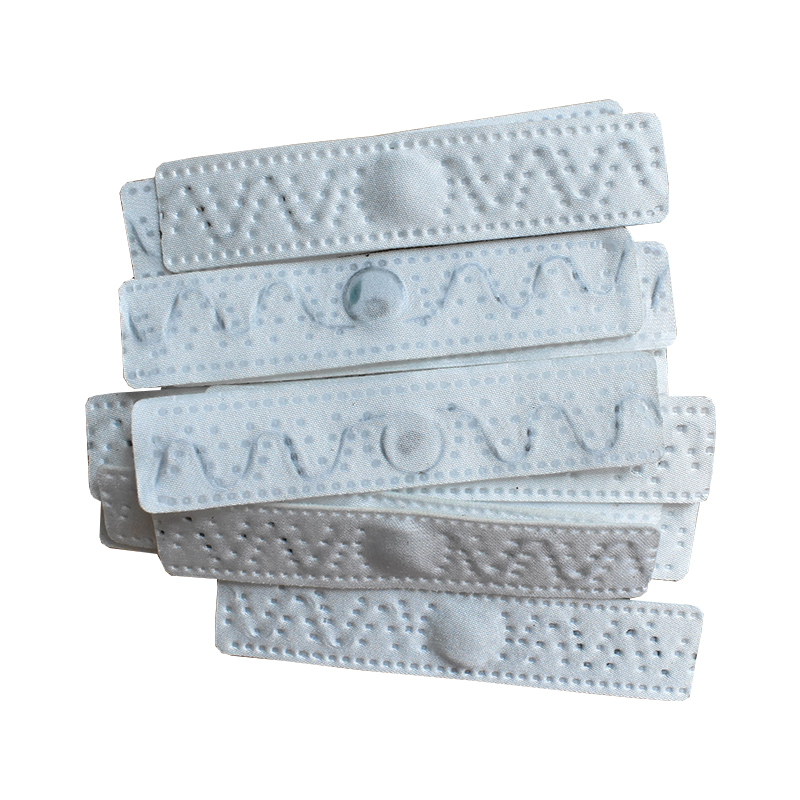

Textile UHF RFID Laundry Tag

  • Size:70X15X1.5mm
  • Frequency:865-928MHz
  • Chip:Impinj MonzaR6P
  • Memory:EPC128bits,User32bits
  • Product description: UHF RFID laundry management woven high temperature heat resistant clothing tag washable tag for linen tracking Mainly used in hotels, hospitals, restaurants, factories of clothing, linen and fabric
  • INQUIRY

UHF RFID Laundry Tag

Order Now

Brief introduction
*Size: 70*15*1.5 mm
*Frequency:865-928MHz
*Protocol:ISO18000-6C
*Chip: Impinj Monza R6P
*Storage: EPC 128bits;User 32bits

Product Features
*1. Good softness, suitable for textile, clothing and fur;
*2. Low cost, high efficiency and durable;

*3. Used for autoclaving, continuous washing, dehydration, ironing

and other washing conditions within a short time;

*4.Material and design have been tested for reliability;

*5. Mainly used in hotels, hospitals, restaurants, factories of clothing,

linen and fabric life cycle management.


Specification

Model Number

RL-T62/RL-T62H(With TPU Glue)

Performance Index

Material

Soft Textile polyester

Size

70*15*1.5 mm

Weight

0.5g

Frequency

865-928MHz

Chip

Impinj Monza R6P

Protocol

EPC Class 1 Gen2/ISO18000-6C

Read Distance

Up to 6m(UHF RFID Fixed Reader 4W EIRP)

Failure rate

0.1% (excluding deformation, discoloration and bending in normal use)

Data storage

20 Years

Read/Write

Yes

Lifetime

200 wash cycles or 3 years

Mechanical Resistance

60kg/² for 80 seconds

Storage Temperature

-40~ +120 ℃

Operating Temperature

1.Washing

100, 200 minutes

2.Drying

180, 15minutes

3. Ironing

210, 60 seconds(Spacer Cloth between the ironing and Tag)

Installation

1. Small cloth bag: Tag is placed in a small cloth bag, and sewed on the edge of the Towels

2. Embedded installation: placed in the folding edge of linen Products, such as Towels, Sheets, Clothing

3.Hot pressing: Stick the Tag on the surface of the Towels through the Hot pressing machine(215°C/15s)

Washing Type

Washing and dry-cleaning (PERchloroethylene, hydrocarbon solvent)

Anti chemical

Resistance to acid and alkali and other chemicals in the washing process (detergent, softener, bleach (oxygen/chlorine), strong alkali)

Application

uniforms management, Medical apparel management, military clothing, management, industrial washing, personnel patrol management
