  • Industrial Laundry 900mhz uhf wearable washing Textile rifd tags to tracking clothing objects
  • Industrial Laundry 900mhz uhf wearable washing Textile rifd tags to tracking clothing objects
Industrial Laundry 900mhz uhf wearable washing Textile rifd tags to tracking clothing objects Industrial Laundry 900mhz uhf wearable washing Textile rifd tags to tracking clothing objects

Industrial Laundry 900mhz uhf wearable washing Textile rifd tags to tracking clothing objects

  • Size:70X15X1.5mm
  • Frequency:865-928MHz
  • Chip:Impinj MonzaR6P
  • Memory:EPC128bits,User32bits
  • Product description: UHF RFID laundry management woven high temperature heat resistant clothing tag washable tag for linen tracking Mainly used in hotels, hospitals, restaurants, factories of clothing, linen and fabric
  • INQUIRY

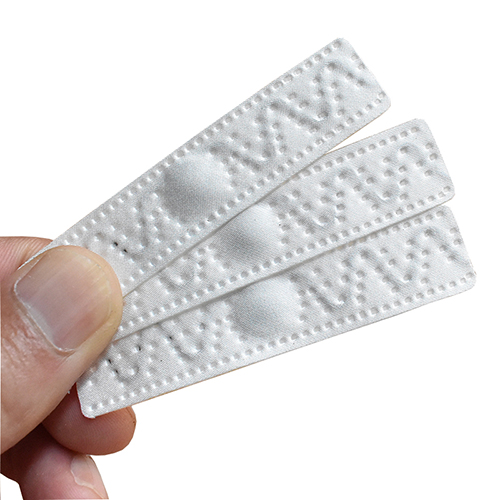

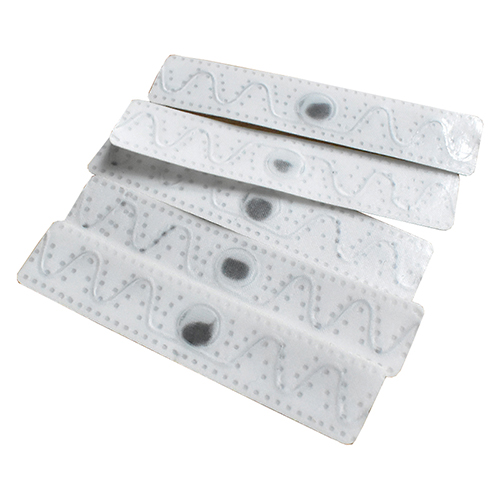

UHF RFID Laundry Tag

Order Now

Brief introduction
*Size: 70*15*1.5 mm
*Frequency:865-928MHz
*Protocol:ISO18000-6C
*Chip: Impinj Monza R6P
*Storage: EPC 128bits;User 32bits

Product Features
*1. Good softness, suitable for textile, clothing and fur;
*2. Low cost, high efficiency and durable;

*3. Used for autoclaving, continuous washing, dehydration, ironing

and other washing conditions within a short time;

*4.Material and design have been tested for reliability;

*5. Mainly used in hotels, hospitals, restaurants, factories of clothing,

linen and fabric life cycle management.


Specification

Model Number

RL-T62/RL-T62H(With TPU Glue)

Performance Index

Material

Soft Textile polyester

Size

70*15*1.5 mm

Weight

0.5g

Frequency

865-928MHz

Chip

Impinj Monza R6P

Protocol

EPC Class 1 Gen2/ISO18000-6C

Read Distance

Up to 6m(UHF RFID Fixed Reader 4W EIRP)

Failure rate

0.1% (excluding deformation, discoloration and bending in normal use)

Data storage

20 Years

Read/Write

Yes

Lifetime

200 wash cycles or 3 years

Mechanical Resistance

60kg/² for 80 seconds

Storage Temperature

-40~ +120 ℃

Operating Temperature

1.Washing

100, 200 minutes

2.Drying

180, 15minutes

3. Ironing

210, 60 seconds(Spacer Cloth between the ironing and Tag)

Installation

1. Small cloth bag: Tag is placed in a small cloth bag, and sewed on the edge of the Towels

2. Embedded installation: placed in the folding edge of linen Products, such as Towels, Sheets, Clothing

3.Hot pressing: Stick the Tag on the surface of the Towels through the Hot pressing machine(215°C/15s)

Washing Type

Washing and dry-cleaning (PERchloroethylene, hydrocarbon solvent)

Anti chemical

Resistance to acid and alkali and other chemicals in the washing process (detergent, softener, bleach (oxygen/chlorine), strong alkali)

Application

uniforms management, Medical apparel management, military clothing, management, industrial washing, personnel patrol management
