Handheld PDA

  • 5.5 INCH Industrial Handheld PDA Barcode Scanner Android Pos Terminal With Built-in Printer
  • 5.5 INCH Industrial Handheld PDA Barcode Scanner Android Pos Terminal With Built-in Printer
  • 5.5 INCH Industrial Handheld PDA Barcode Scanner Android Pos Terminal With Built-in Printer
5.5 INCH Industrial Handheld PDA Barcode Scanner Android Pos Terminal With Built-in Printer5.5 INCH Industrial Handheld PDA Barcode Scanner Android Pos Terminal With Built-in Printer5.5 INCH Industrial Handheld PDA Barcode Scanner Android Pos Terminal With Built-in Printer

5.5 INCH Industrial Handheld PDA Barcode Scanner Android Pos Terminal With Built-in Printer

  • CPU:Cortex-A53 64bit Quad-core 2.0GHz
  • Standard:WiFi,4G,GPS,Camera,printer
  • display:5.5 inch IPS color display with resolution720*1440
  • Battery: 3.8V 4200mAh. removable
  • Product description: 5.5 INCH Industrial Handheld PDA 2D Barcode Scanner Logistic Wireless Android Pos Terminal With Built-in Printer
  • INQUIRY

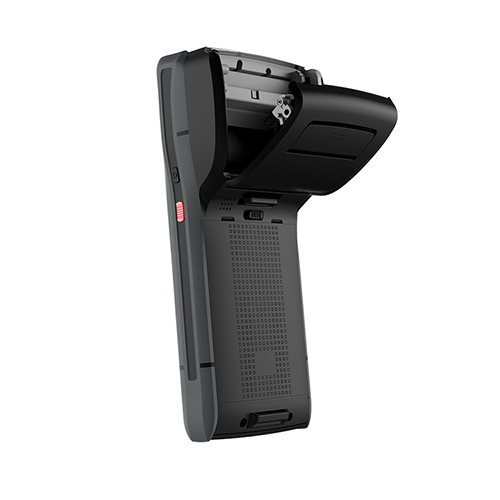

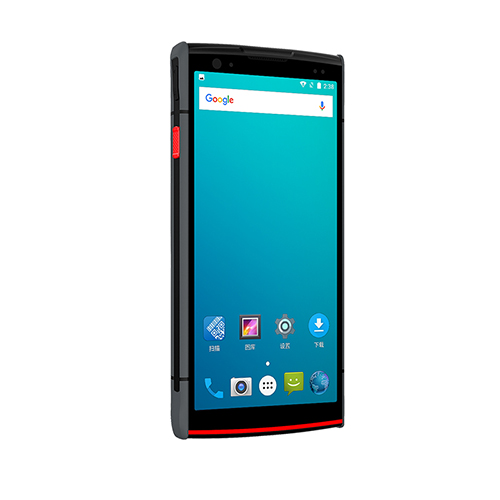

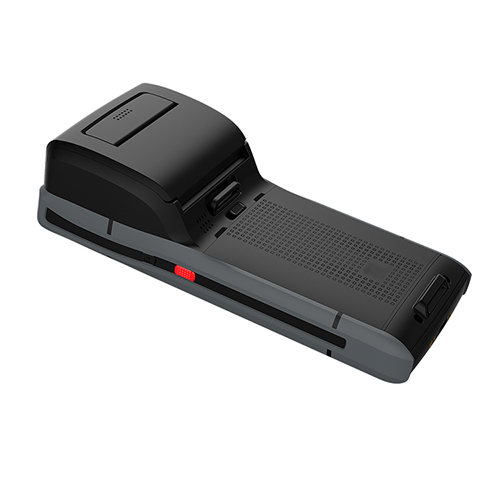

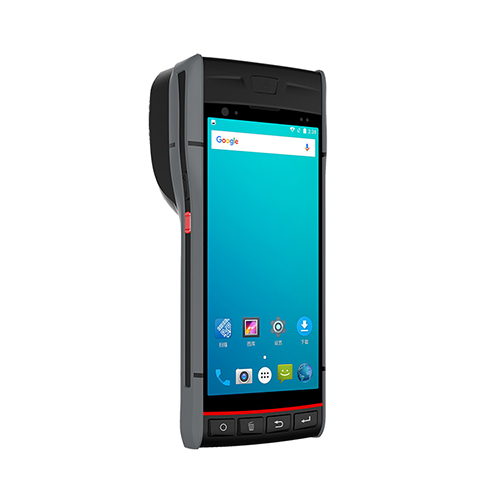

RL-H60 is an Android rugged Handheld Terminal PDA with Self-adhesive Printer. high-performance, high-reliability industrial-grade handheld barcode data terminal based on the Android 8.1 operating system. It has strong and stable performance, light and durable appearance, and supports 1D/2D barcode scanning,GPS. Positioning, photo taking, Wi-Fi, Bluetooth, 2G/3G/4G and other functions.


Specification

Model Number

RL-RH60

Performance Quad-core

CPU

Cortex-A53 64bit Quad-core 2.0GHz

RAM+ROM

2GB+16GB (Supports up to 3GB+32GB)

Expansion

Supports up to 128 GB Micro SD card

Operating System

Android 8.1

Performance OCTA core

CPU

Cortex-A53 64bit Quad-core 2.0GHz

RAM+ROM

2GB+16GB (Supports up to 3GB+32GB/4GB+64GB)

Expansion

Supports up to 128 GB Micro SD card

Operating System

Android 9.0

Data Communication

WLAN

Dual-band 2.4GHz /5GHz, Supporting IEEE 802 a/b/g/n/ac protocol

WWAN

2GGSM850/900/1800/1900MHz

3GWCDMA850/900/1900/2100MHz

4GFDD:B1/B3/B4/B7/B8/B12/B20,TDD:B38/B39/B40/B41

Bluetooth

Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m

GNSS

Support GPS,Galileo,Glonass,Beidou

Physical Characteristics

Dimensions 177mm×72mm×23.7-48.8mm

Weight <500g ((Depends on device function configuration)

Display 5.5 inch IPS color display with resolution720*1440

TP Corning Gorilla glass, Supports multi-touch, Supported gloves and wet hands

Power Rechargeable polymer battery (3.8V 4200mAh) removable

Standby: over 350 hours

Continuous use: over 12 hours (depending on user environment)

Charging time: 3-4 hours (with standard adaptor and USB cable)

Fast charging:1.5HOptional

Expansion Slot PSAM x 2, Micro SIM card x 1 , TF card × 1

Interfaces Type-C USB x 1, OTG

Audio Speaker (mono), Microphone, Earpiece

Keypad Silicone button: Power button, Volume +/- button, Scan button × 2

Sensor Gravity sensor, Light sensor, Proximity sensor, Vibration motor

User Environment

Operating Temp.

-4°F to 122°F / -20°C to 50°C

Storage Temp.

-40°F to 158°F / -40°C to 70°C

Humidity

5%RH - 95%RH non condensing

Drop Specification

6 sides Supports 1.2 meters drops and 30 times to the concrete in the operating temperature

Rolling test

500×0.5m rolling for 6 sides

Protection Level

IP-66

Data Collection

Rear Camera

13MP HD camera, Support auto focus, Flash, Anti-shake, Macro shooting

Front Camera

2MP color camera

Barcode Scanning (Optional)

2D Linear scanner

Honeywell N3601/6603

2D Symbologies

PDF417,Micro PDF417,GS1 Composite, Aztec Code, Data Matrix, QR Code, Micro QR Code, Maxicode, Hanxin Code,etc.

Maxicode,Hanxin Code,etc.

Thermal Label Printer

Printing Speed

70mm/s

Print Points

384 dots

Paper Width

58mm

Paper Diameter

35mm

Paper Type

Support for sticker/label black mark Printing

NFC (Optional)


Frequency

13.56MHz


Protocol

Support ISO14443A/B, ISO15693


Range

2-5cm


Language/input method


Input

English, Pinyin, Five strokes, Handwriting input, Support soft keypad


Language

Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian,etc.


Accessories


Standard Adapter, Data cable, Protective film, Instruction manual


Optional Cradle, etc.
