UHF RFID Antenna

  • 12dBi Asset Management UHF RFID Antenna
  • 12dBi Asset Management UHF RFID Antenna
12dBi Asset Management UHF RFID Antenna12dBi Asset Management UHF RFID Antenna

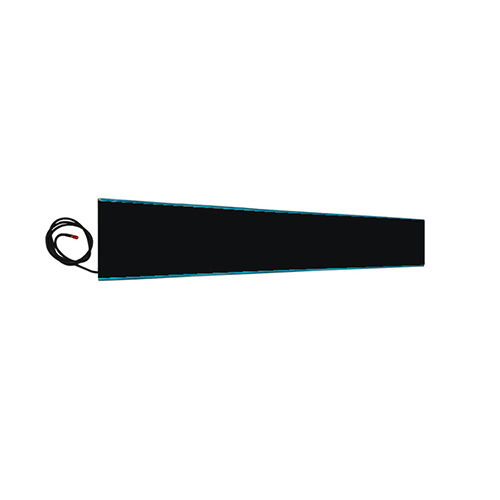

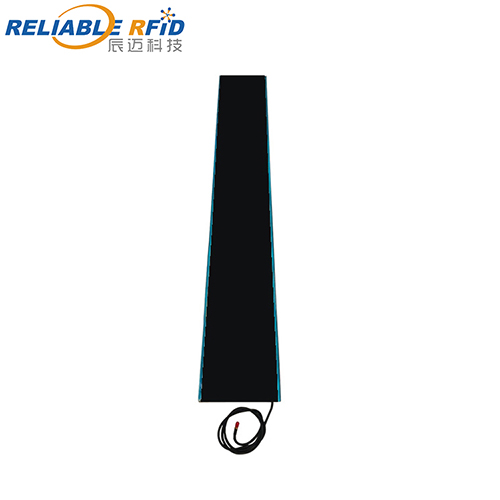

12dBi Asset Management UHF RFID Antenna

  • Frequency:865-868MHz/902-928MHz
  • Gain:12dBi
  • Polarization: Circular
  • Connector:SMA Female
  • Product description:
  • INQUIRY

12dBi Asset Management UHF RFID Antenna-Order Now

Brief introduction

*Size:1200(L)*180 (W)*20(H)mm
*Frequency:865-868MHz,902-928MHz
*Polarization: Circular

*Weight:about 3.5KG

Product Features
*1.12dBi, Superior performance, high cost-effective
*2. PMMA+ Aluminum alloy material
*3. widely used in asset management, warehouse management system

Specification

Model Number

RL-A1200

Performance Index

Frequency

865-868MHz902-928MHz(can be customized)

Input impedance

50ohm

VSWR

1.4

Front/Back Rate 20

Connector

SMA Female or customized

Polarization Linear

V Beamwidth-°

45

H Beamwidth-°

45

Lighting Protection                      DC Grounding

Size

1200(L)*180 (W)*20(H)mm

Weight                                     3.5KG

Material

PMMA + Aluminum alloy

IP Grade                                    IP-54

Work Temperature

-40°C--70°C

Storage Temperature                  -40°C--80°C

Installation

Screw

Package Size                             1300*200*32.5mm
