UHF RFID Antenna

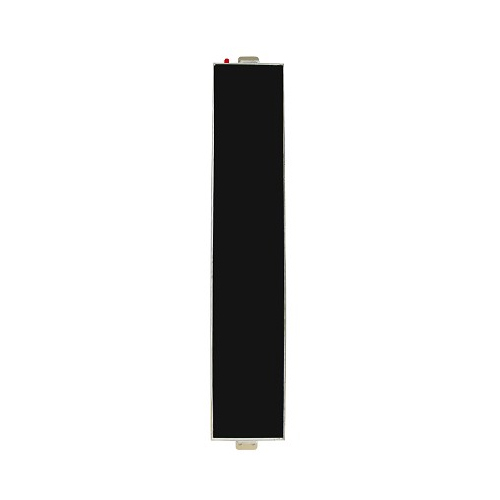

  • 5dBi Asset Tracking Management UHF RFID Antenna
5dBi Asset Tracking Management UHF RFID Antenna

5dBi Asset Tracking Management UHF RFID Antenna

  • Frequency:865-868MHz/902-928MHz
  • Gain:5dBi
  • Polarization: Linear
  • Connector:SMA Female
  • Product description: 5dbi 50ohm Linear Polarization UHF RFID Smart Shelf Antenna
  • INQUIRY

5dBi Asset Tracking Management UHF RFID Antenna-Order Now

Brief introduction

*Size:450(L)*90 (W)*20(H)mm
*Frequency:865-868MHz,902-928MHz
*Polarization: Linear

*Weight:about 0.6KG

Product Features
*1.Small Size, Superior performance, high cost-effective
*2. PMMA+ Aluminum alloy material
*3. widely used in asset management, warehouse management system

Specification

Model Number

RL-A905

Performance Index

Frequency

865-868MHz902-928MHz(can be customized)

Input impedance

50ohm

VSWR

1.5

Front/Back Rate 20

Connector

SMA Female or customized

Polarization Linear

V Beamwidth-°

72

H Beamwidth-°

60

Lighting Protection                     DC Grounding

Size

490(L)*90 (W)*20(H)mm

Weight                                     0.6KG

Material

PMMA + Aluminum alloy

IP Grade                                   IP-54

Work Temperature

-40°C--70°C

Storage Temperature                 -40°C--80°C

Installation

Screw

Package Size                              600*105*25mm
