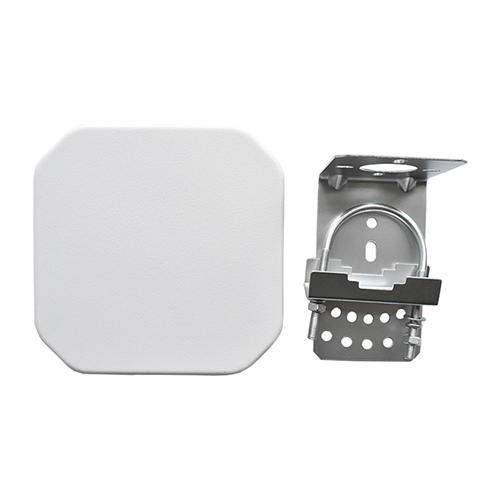

868mhz 915mhz 5dbi high gain uhf rfid Circular Patch antenna -Order Now
Brief introduction
*Size:132(L)*132 (W)*18(H)mm
*Frequency:865-928MHz
*Polarization: Circular
*Weight：about 0.4KG
Product Features
*1.Small Size, Superior performance, high cost-effective
*2.ABS Shell + Aluminum alloy material
*3. widely used in asset management, warehouse management system
|
Specification |
|
|
Model Number |
RL-A95 |
|
Performance Index |
|
|
Frequency |
865-928MHz(can be customized) |
|
Input impedance |
50ohm |
|
VSWR |
≤1.3 |
|
Front/Back Rate ≥8 |
|
|
Connector |
N Female or customized |
|
Polarization Circular |
|
|
V Beamwidth-° |
100 |
|
H Beamwidth-° |
100 |
Lighting Protection DC Grounding
|
Size |
1100(L)*520 (W)*27(H)mm |
Weight 0.4KG
|
Material |
ABS Shell + Aluminum alloy |
IP Grade IP-67
|
Work Temperature |
-40°C--60°C |
Storage Temperature -40°C--80°C
|

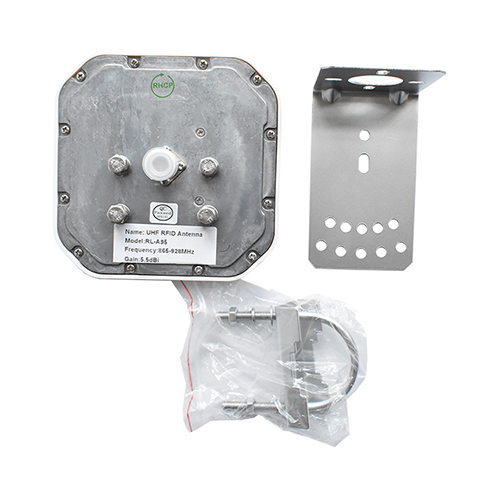

Installation |
Screw，With L shape Clip code |
Pole Diameter 40-50mm
