UHF Anti-Metal Tag

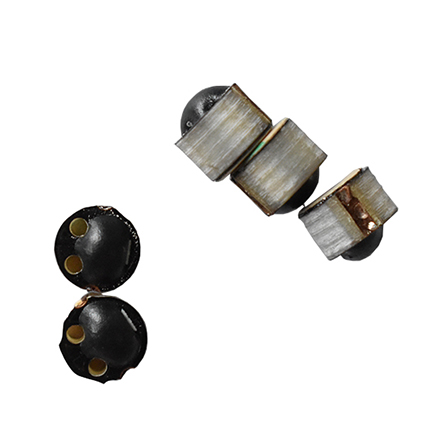

5mm Mini UHF RFID on Metal tag

Brief introduction Product Features

*Size: Diameter 5 mm, Thickness 3mm *1. NXP Ucode 8 Chip to achieve best reading effect;

*Frequency:902-928MHz *2.Linear Antenna design to achieve best sensitivity; *Protocol:ISO18000-6C *3.Unique TID number, high security performance;

*Chip: NXP Ucode8 EPC 128bits *4.Application: small metal asset management

Specification
Model number	RL-TM05
Performance Index
Material	FR4
Size	Diameter 5mm, Thickness 3mm
Weight	0.5g
Frequency 902-928MHz
Read Distance	More than 50cm with 4W EIRP Alien 9900 reader,10cm with Alien 9011 reader
Drop Test 1m height, 200 times passed.
Data storage	More than 10 years
Data erasable	More than 100000times
Storage Temperature	-25°C--85°C
work Temperature	-45°C--110°C
IP Grade	IP63 , can be IP65 after Surface spray treatment
ROHS	Pass, material Pass SGS
Installation	3M300LSE adhesive
Application	IT assets, small metal asset management
