UHF Anti-Metal Tag

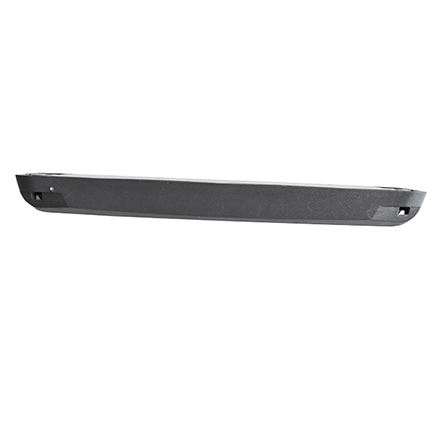

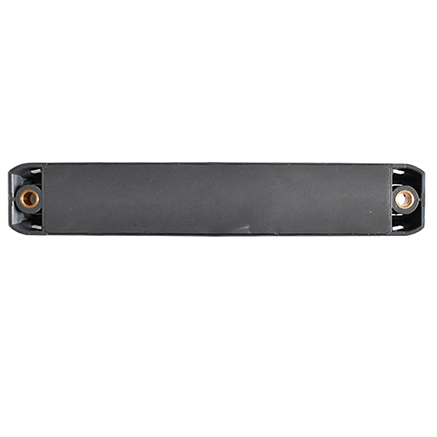

16m Long Distance UHF On Metal Tag

  • Frequency:865-868MHz/902-928MHz
  • Chip:Impinj M4QT
  • Read distance:10-18m
  • Lead time:1-3days
  • Product description: *1. Impinj M 4QT Chip to achieve best reading effect; *2.Linear Antenna design to achieve best sensitivity;       *3. EPC:128bits;user 512bit; Widely used in Vehicle Tracking, metal container, p
  • INQUIRY

16m Long Distance ABS UHF On Metal Tag-Order Now

*Size:155(L)*27 (W)*14.5(H)mm

*Frequency:902-928/865-868MHz
*Protocol:ISO18000-6C
*Chip: Impinj Monza 4QT

Specification

Model number

RL-TM181

Performance Index

Material

ABS

Size/Weight

155(L)*27 (W)*14.5(H)mm /34.2g

Read Distance

10-18mdepend on reader and environment

Drop Test                               1m height, 200 times passed.

Acid/alkali Resistant

Can Resist PH=510

Gasoline/alcohol Test             92# gasoline wiped and 95% alcohol test. Passed

IP Grade

IP-55

Data storage/erasable

More than 10 years/more than 100000times

Storage/work Temperature

-25°C--85°C/-35°C--70°C

Other Craft

Encoding, Laser mark barcode or QR code, Serial number

Installation

Screws, Rivets, Cable Tie

Package

Carton box 360*260*100mm/72pcs,3KG

Application

Vehicle Tracking, metal container, power facility, Wagon Tracking, Storage

shelves
